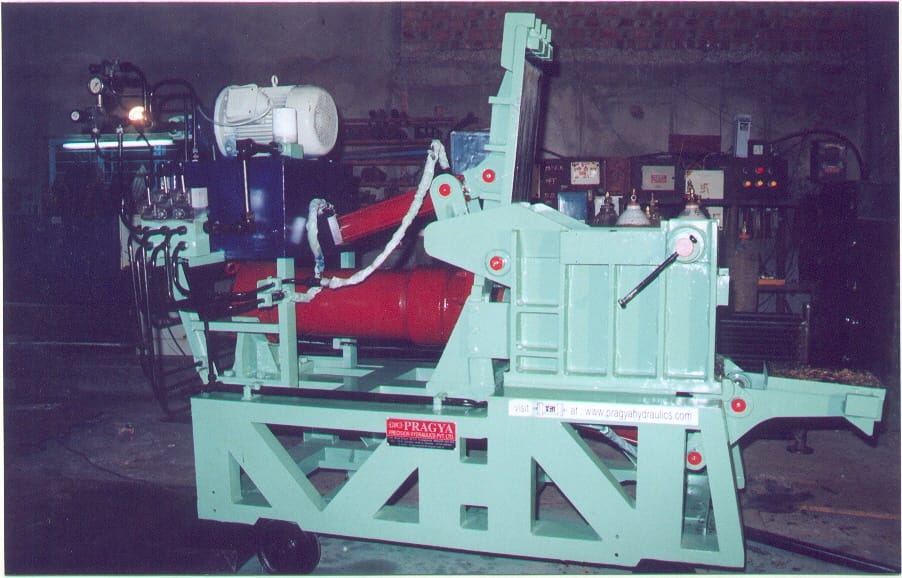

Hydraulic Baling Press: Compacting Scrap and Sheet Metal Waste

A hydraulic baling press compresses loose scrap metal and sheet metal offcuts into dense, uniform bales using hydraulic pressing force from 100 to 400 ton, cutting the volume of scrap that needs to be stored, transported, or fed into downstream processing. Where the scrap arrives as oversized plate or offcuts, a hydraulic shear machine cuts it down before baling. The bale format turns bulky, awkward scrap into a manageable, stackable product.

How compaction works

Scrap is loaded into a compression chamber where a hydraulic ram applies force from one or more sides, depending on whether the press is a single, double, or triple compression design. The result is a compact bale with far higher density than loose scrap of the same weight — critical for transport economics, since trucks and containers are usually volume-limited before they're weight-limited on scrap loads.

Specifications

• Pressing force: 100 to 400 ton
• Bale size: 400×400 to 800×800 mm
• Cycle time: 60 to 150 seconds
• Motor power: 15 to 75 kW
• Control: manual, semi-automatic, full PLC

Materials and configurations

Baling presses handle steel, aluminum, copper, and stainless steel scrap — much of it generated by shearing and forming operations elsewhere in the shop. Configurations range from a standard hydraulic press for general scrap baling, to heavy-duty models with increased pressing force for denser bales, up to fully automatic PLC-controlled units with automatic bale ejection that reduce operator handling per cycle.

The ROI angle

Denser bales mean fewer truckloads to move the same tonnage of scrap, and many scrap buyers price baled material higher than loose scrap because it's easier to handle and store on their end. Cycle time (60–150 seconds depending on configuration) sets your throughput ceiling, so for high-volume scrap generation, a PLC-controlled press with automatic ejection will pay back the added cost in reduced labor per bale faster than a manual unit — the trade-off is mainly about scrap volume, not just bale price.

Single, double, and triple compression

Compression design affects both bale density and cycle time. Single compression presses apply force from one direction, suiting lighter-gauge sheet metal waste. Double and triple compression designs apply force from multiple sides in sequence, producing denser, more uniform bales from mixed or bulkier scrap — at the cost of a longer cycle per bale. Matching compression type to your actual scrap stream (loose turnings versus sheet offcuts versus mixed structural scrap) affects achievable bale density more than pressing force alone.

Sizing pressing force to your scrap stream

Pressing force requirements scale with both the volume of scrap processed per cycle and how compressible the material is — light-gauge sheet compacts more readily than heavier structural offcuts. Specifying toward the lower end of the 100–400 ton range works for facilities processing mostly sheet metal waste, while scrap yards handling structural steel, thicker plate, or mixed ferrous scrap need the higher end of the range to reach usable bale density in a reasonable cycle time.
